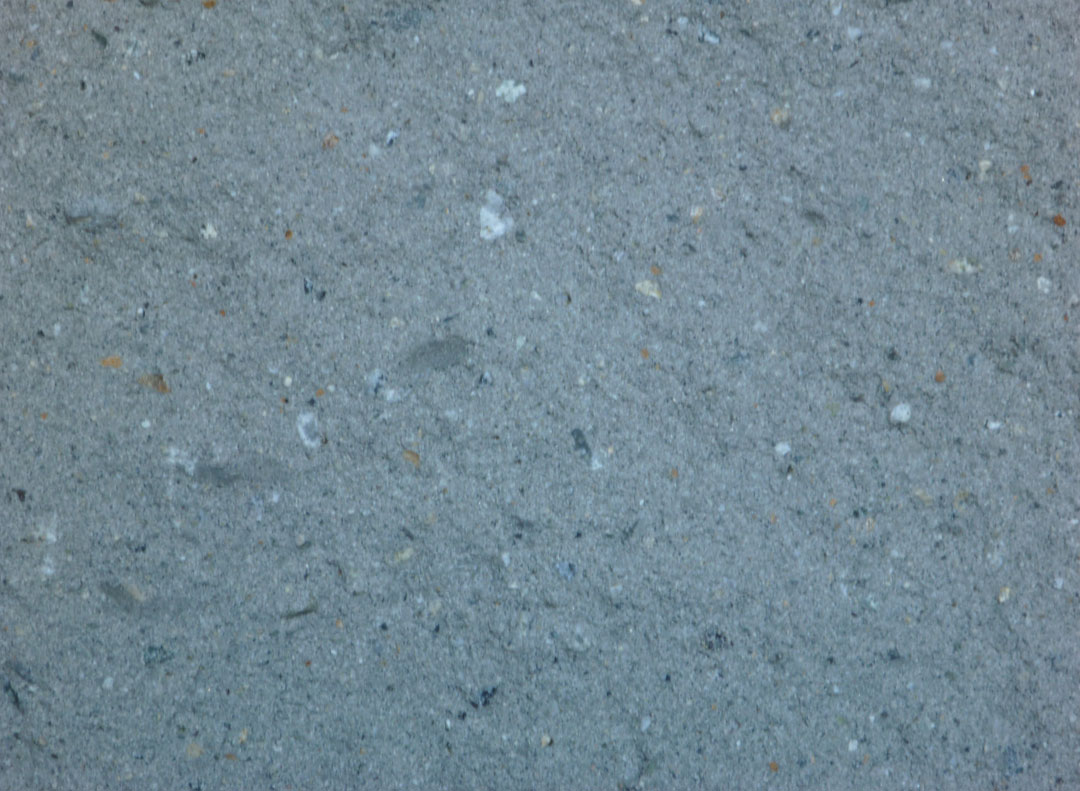

Tristar’s Split-face blocks have a rough face finish that give a stone-like texture to any exposed wall. The split face block is a great choice for builders due to the blocks natural properties. Superior compressive strength and decorative aggregates make this product a safe, low maintenance and attractive wall option. Once installed the block wall will only need to be pressure washed and sealed for an architecturally pleasing finish ready to outlast any alternative finish. We manufacture several colours other than the natural grey. Note that we stock only natural grey and have limited quantities of sandstone available in 20cm full face split.

Use the colour picker to see if our colours will match your exterior.

Please note: We have made every effort to accurately represent our colours on this website. Due to the limits of technology actual colours may vary from what is displayed here. Therefore it is advised that final colour decisions should be made from actual physical samples.

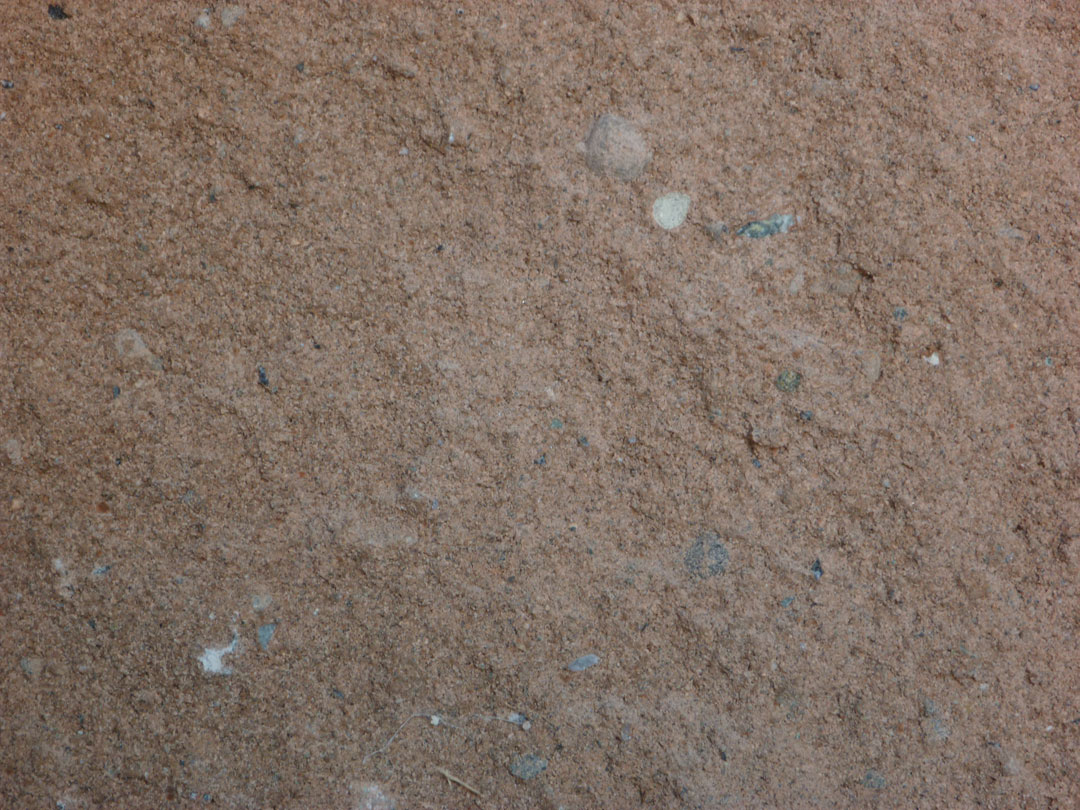

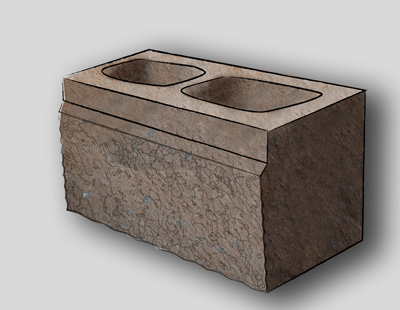

Tan

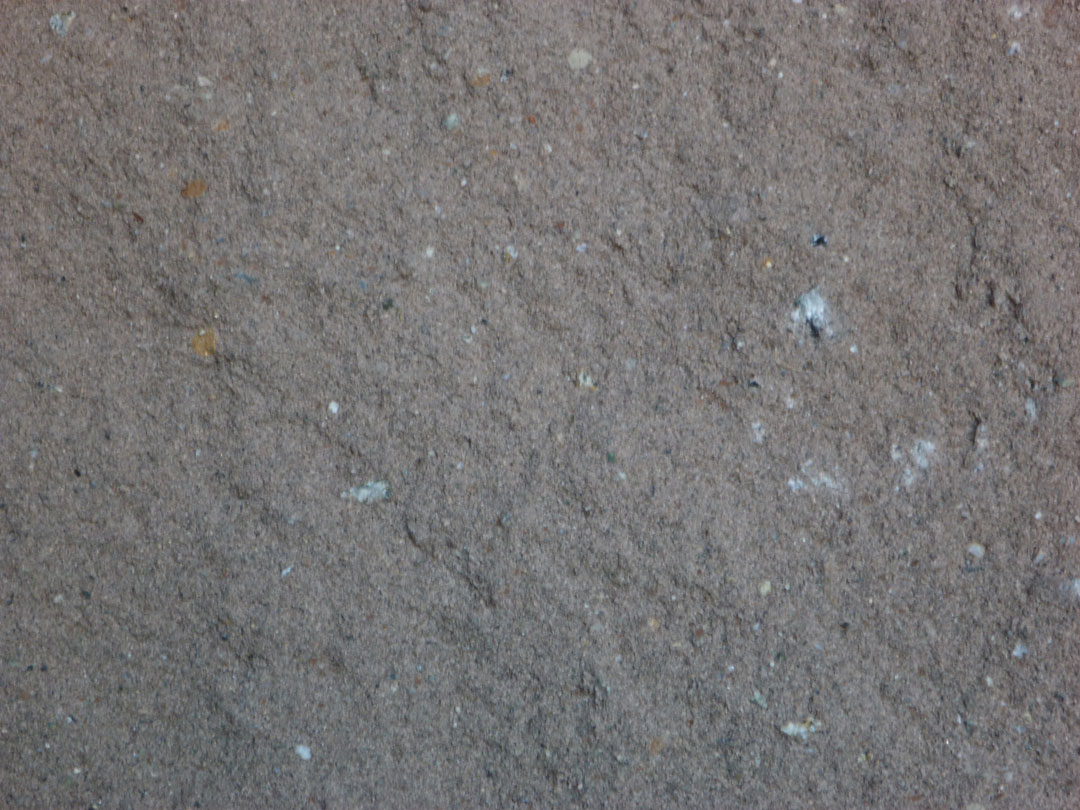

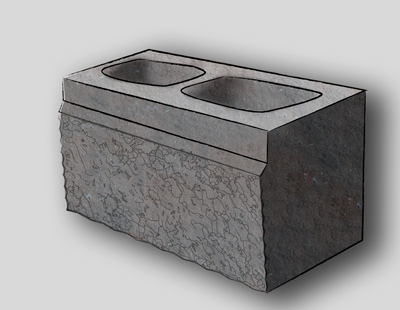

Sandstone

Rose Buff

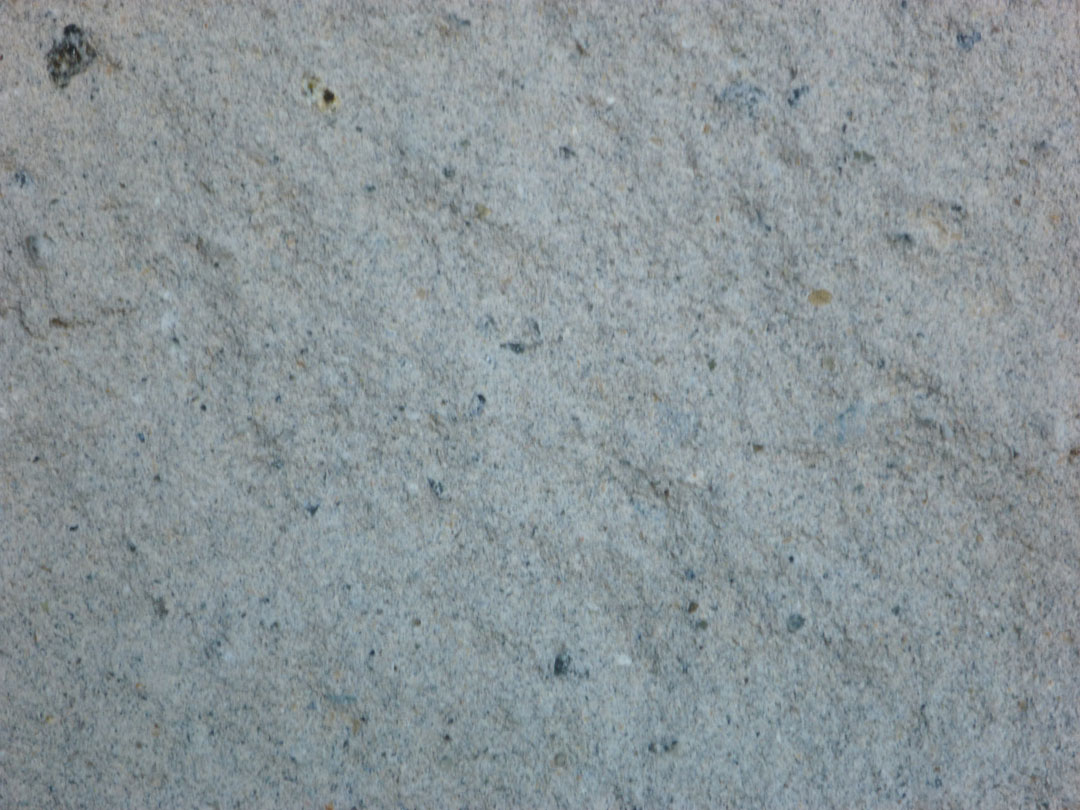

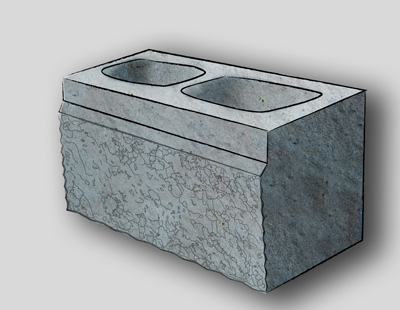

Light Buff

Charcoal

Full Face Split

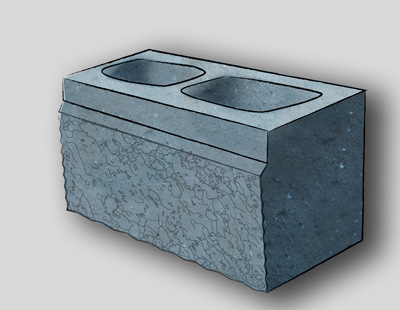

Split-Face Standard Block


[tabbed_section] [tab title=”10 cm” id=”t1″]
Stock Product: YES
Dimensions: 90mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 27 lbs
Pallet Quantity: 132 units
Pallet Weight: 3564 lbs
[/tab] [tab title=”20 cm” id=”t2″]
Stock Product: YES
Dimensions: 190mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 43 lbs
Pallet Quantity: 90 units
Pallet Weight: 3870 lbs
[/tab] [tab title=”25 cm” id=”t3″]
Stock Product: YES
Dimensions: 240mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 50 lbs
Pallet Quantity: 75 units
Pallet Weight: 3750 lbs
[/tab] [tab title=”30 cm” id=”t4″]
Stock Product: NO
Dimensions: 290mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 60 lbs
Pallet Quantity: 60 units
Pallet Weight: 3600 lbs
[/tab] [/tabbed_section]

Split-Face Half Block


[tabbed_section] [tab title=”10 cm” id=”t1″]
Stock Product: NO
Dimensions: 90mm (W) x 190mm (H) 190mm (L)
Volume:
Unit Weight: 12 lbs
Pallet Quantity: 312 units
Pallet Weight: 3744 lbs
[/tab] [tab title=”20 cm” id=”t2″]
Stock Product: YES
Dimensions: 190mm (W) x 190mm (H) 190mm (L)
Volume:
Unit Weight: 24 lbs
Pallet Quantity: 144 units
Pallet Weight: 3456 lbs
[/tab] [tab title=”25 cm” id=”t3″]
Stock Product: NO
Dimensions: 240mm (W) x 190mm (H) 190mm (L)
Volume:
Unit Weight: 25 lbs
Pallet Quantity: 120 units
Pallet Weight: 3000 lbs
[/tab] [tab title=”30 cm” id=”t4″]
Stock Product: NO
Dimensions: 290mm (W) x 190mm (H) 190mm (L)
Volume:
Unit Weight: 32 lbs
Pallet Quantity: 96 units
Pallet Weight: 3072 lbs
[/tab] [/tabbed_section]

Split-Face Half-High Block


[tabbed_section] [tab title=”10 cm” id=”t1″]
Stock Product: NO
Dimensions: 90mm (W) x 90mm (H) 390mm (L)
Volume:
Unit Weight: 13 lbs
Pallet Quantity: 312 units
Pallet Weight: 4056 lbs
[/tab] [tab title=”20 cm” id=”t2″]
Stock Product: YES
Dimensions: 190mm (W) x 90mm (H) 390mm (L)
Volume:
Unit Weight: 19 lbs
Pallet Quantity: 144 units
Pallet Weight: 2736 lbs
[/tab] [tab title=”25 cm” id=”t3″]
Stock Product: NO
Dimensions: 240mm (W) x 90mm (H) 390mm (L)
Volume:
Unit Weight: 25 lbs
Pallet Quantity: 120 units
Pallet Weight: 3000 lb
[/tab] [tab title=”30 cm” id=”t4″]
Stock Product: NO
Dimensions: 290mm (W) x 90mm (H) 390mm (L)
Volume:
Unit Weight: 32 lbs
Pallet Quantity: 96 units
Pallet Weight: 3072 lbs
[/tab] [/tabbed_section]

Split-Face Return Block


[tabbed_section] [tab title=”20 cm” id=”t1″]
Stock Product: YES
Dimensions: 190mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 43 lbs
Pallet Quantity: 90 units
Pallet Weight: 3870 lbs
[/tab] [/tabbed_section]

Split-Face Return Half Block


[tabbed_section] [tab title=”20 cm” id=”t2″]
Stock Product: YES
Dimensions: 190mm (W) x 190mm (H) 190mm (L)
Volume:
Unit Weight: 23 lbs
Pallet Quantity: 144 units
Pallet Weight: 3312 lbs
[/tab] [/tabbed_section]

Split-Face Return Half-High Block


[tabbed_section] [tab title=”20 cm” id=”t2″]
Stock Product: NO
Dimensions: 190mm (W) x 90mm (H) 390mm (L)
Volume:
Unit Weight: 18 lbs
Pallet Quantity: 144 units
Pallet Weight: 2592 lbs
[/tab] [/tabbed_section]

Split-Face: Rebar / KOBB Block


[tabbed_section] [tab title=”20 cm” id=”t1″]
Stock Product: YES
Dimensions: 190mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 40 lbs / 43 lbs
Pallet Quantity: 90 units
Pallet Weight: 3600 lbs / 3870 lbs
[/tab] [tab title=”25 cm” id=”t2″]
Stock Product: NO
Dimensions: 240mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 45 lbs / 48 lbs
Pallet Quantity: 75 units
Pallet Weight: 3375 lbs / 3600 lbs
[/tab] [tab title=”30 cm” id=”t3″]
Stock Product: NO
Dimensions: 290mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 53 lbs / 56 lbs
Pallet Quantity: 60 units
Pallet Weight: 3180 lbs / 3360 lbs
[/tab] [/tabbed_section]

Single Score, Split-Face Blocks


[tabbed_section] [tab title=”10 cm” id=”t1″]
Stock Product: NO
Dimensions: 90mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 26 lbs
Pallet Quantity: 156 units
Pallet Weight: 4056 lbs
[/tab] [tab title=”20 cm” id=”t2″]
Stock Product: NO
Dimensions: 190mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 40 lbs
Pallet Quantity: 90 units
Pallet Weight: 3600 lbs
[/tab] [tab title=”25 cm” id=”t3″]
Stock Product: NO
Dimensions: 240mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 50 lbs
Pallet Quantity: 75 units
Pallet Weight: 3750 lbs
[/tab] [tab title=”30 cm” id=”t4″]
Stock Product: NO
Dimensions: 290mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 60 lbs
Pallet Quantity: 60 units
Pallet Weight: 3600 lbs
[/tab] [/tabbed_section]

Splitface Ledge

Split-Face Ledge Solid Block


[tabbed_section] [tab title=”10 cm” id=”t1″]
Stock Product: NO
Dimensions: 90mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 30 lbs
Pallet Quantity: 108 units
Pallet Weight: 3240 lbs
[/tab] [/tabbed_section]

Split-Face Ledge Block


[tabbed_section] [tab title=”20 cm” id=”t1″]
Stock Product: NO
Dimensions: 190mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 42 lbs
Pallet Quantity: 90 units
Pallet Weight: 3780 lbs
[/tab] [tab title=”25 cm” id=”t2″]
Stock Product: NO
Dimensions: 240mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 52 lbs
Pallet Quantity: 75 units
Pallet Weight: 3900 lbs
[/tab] [/tabbed_section]

Splitface Ledge Rebar Block


[tabbed_section] [tab title=”20 cm” id=”t2″]
Stock Product: NO
Dimensions: 190mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 42 lbs
Pallet Quantity: 90 units
Pallet Weight:
[/tab] [tab title=”25 cm” id=”t3″]
Stock Product: NO
Dimensions: 240mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 52 lbs
Pallet Quantity: 75 units
Pallet Weight: 3900 lbs
[/tab] [/tabbed_section]

Split-Face Ledge Half Block


[tabbed_section] [tab title=”20 cm” id=”t2″]
Stock Product: NO
Dimensions: 190mm (W) x 190mm (H) 190mm (L)
Volume:
Unit Weight: 22 lbs
Pallet Quantity: 144
Pallet Weight: 3168 lbs
[/tab] [tab title=”25 cm” id=”t3″]
Stock Product: NO
Dimensions: 240mm (W) x 190mm (H) 390mm (L)
Volume:
Unit Weight: 26 lbs
Pallet Quantity: 120 units
Pallet Weight: 3900 lbs
[/tab] [/tabbed_section]

Split-Face Rib

NOTE: All Tristar’s split-face ribbed blocks come in imperial sizes only.

Split Face 4 Rib


[tabbed_section] [tab title=”4 inch” id=”t1″]
Stock Product: NO
Dimensions: 3-5/8″ (W) x 7-5/8″ (H) 15-5/8″ (L)
Volume:
Unit Weight: 34 lbs
Pallet Quantity: 108 units
Pallet Weight: 3672 lbs
[/tab] [tab title=”8 inch” id=”t2″]
Stock Product: NO
Dimensions: 7-5/8″ (W) x 7-5/8″ (H) 15-5/8″ (L)
Volume:
Unit Weight: 46 lbs
Pallet Quantity: 75 units
Pallet Weight: 3450 lbs
[/tab] [tab title=”10 inch” id=”t3″]
Stock Product: NO
Dimensions: 9-5/8″ (W) x 7-5/8″ (H) 15-5/8″ (L)
Volume:
Unit Weight: 55 lbs
Pallet Quantity: 60 units
Pallet Weight: 3300 lbs
[/tab] [tab title=”12 inch” id=”t4″]
Stock Product: NO
Dimensions: 11-5/8″ (W) x 7-5/8″(H) 15-5/8″ (L)
Volume:
Unit Weight: 65 lbs
Pallet Quantity: 60 units
Pallet Weight: 3900 lbs
[/tab] [/tabbed_section]

Split Face 6 Rib


[tabbed_section] [tab title=”4 inch” id=”t1″]
Stock Product: NO
Dimensions: 3-5/8″ (W) x 7-5/8″ (H) 15-5/8″ (L)
Volume:
Unit Weight: 34 lbs
Pallet Quantity: 108 units
Pallet Weight: 3672 lbs
[/tab] [tab title=”8 inch” id=”t2″]
Stock Product: NO
Dimensions: 7-5/8″ (W) x 7-5/8″ (H) 15-5/8″ (L)
Volume:
Unit Weight: 46 lbs
Pallet Quantity: 75 units
Pallet Weight: 3450 lbs
[/tab] [tab title=”10 inch” id=”t3″]
Stock Product: NO
Dimensions: 9-5/8″ (W) x 7-5/8″ (H) 15-5/8″ (L)
Volume:
Unit Weight: 55 lbs
Pallet Quantity: 60 units
Pallet Weight: 3300 lbs
[/tab] [tab title=”12 in” id=”t4″]
Stock Product: NO
Dimensions: 11-5/8″ (W) x 7-5/8″(H) 15-5/8″ (L)
Volume:
Unit Weight: 65 lbs
Pallet Quantity: 60 units
Pallet Weight: 3900 lbs
[/tab] [/tabbed_section]
